Audio Note AN-K Speakers
AN-K LX speaker, AN-K SPE speaker, AN-K SPx Se speaker, AN-k speaker stands, ...
The The AN-K is a bookshelf-sized loudspeaker capable of a bandwidth
from 50 Hz to 20 Hz (-6 dB) with an efficiency of around 90 dB/m.
Careful pair matching, first by drive unit selection, secondly by pairing drive units with suitable characteristics to each other, and then finally by individually adjusting each speaker's curve, under dynamic conditions to a master curve.
The AN-K cabinet is made from materials that compliment the workings of the chosen drive units, where we, instead of trying to damp the resonances in the cabinet, place them in frequency bands where they aid and enhance the drive unit's work. This novel and quite difficult method helps to ensure maximum efficiency and dynamic behaviour.
Dimensions: (Height, Width, Depth) 470 x 275 x 190mm (18.5" x 10.8" x 7.5").
Careful pair matching, first by drive unit selection, secondly by pairing drive units with suitable characteristics to each other, and then finally by individually adjusting each speaker's curve, under dynamic conditions to a master curve.
The AN-K cabinet is made from materials that compliment the workings of the chosen drive units, where we, instead of trying to damp the resonances in the cabinet, place them in frequency bands where they aid and enhance the drive unit's work. This novel and quite difficult method helps to ensure maximum efficiency and dynamic behaviour.
Dimensions: (Height, Width, Depth) 470 x 275 x 190mm (18.5" x 10.8" x 7.5").
MODEL - Description
AN-K / Lx - 3/4” tweeter & 8” bass driver, 90dB efficient, Audio Note™ LEXUS LX copper cable.
AN-K / SPe - 3/4” tweeter & 8” bass driver, 90dB efficient, Audio Note™ AN-SPe silver cable
AN-K / SPx SE - 3/4” tweeter & 8” bass driver, 90dB efficient, Audio Note™ AN-SPx silver cable, crossover with solid Audio Note™ silver wired inductors with Black Gate bipolar capacitors and Audio Note™ copper foil adjusters.

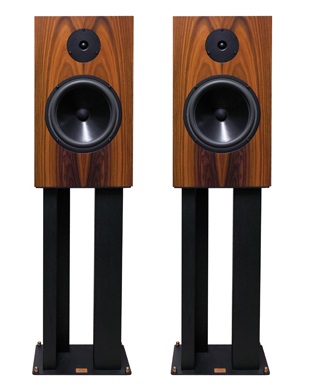

AN-K Speaker Stands - 21” high mass 4-leg black sprayed steel speaker stand. Self assembly. Designed to be filled with fine lead shot and sand to maximise mass.
AN-K / Lx - 3/4” tweeter & 8” bass driver, 90dB efficient, Audio Note™ LEXUS LX copper cable.
AN-K / SPe - 3/4” tweeter & 8” bass driver, 90dB efficient, Audio Note™ AN-SPe silver cable
AN-K / SPx SE - 3/4” tweeter & 8” bass driver, 90dB efficient, Audio Note™ AN-SPx silver cable, crossover with solid Audio Note™ silver wired inductors with Black Gate bipolar capacitors and Audio Note™ copper foil adjusters.
AN-K Speaker Stands - 21” high mass 4-leg black sprayed steel speaker stand. Self assembly. Designed to be filled with fine lead shot and sand to maximise mass.

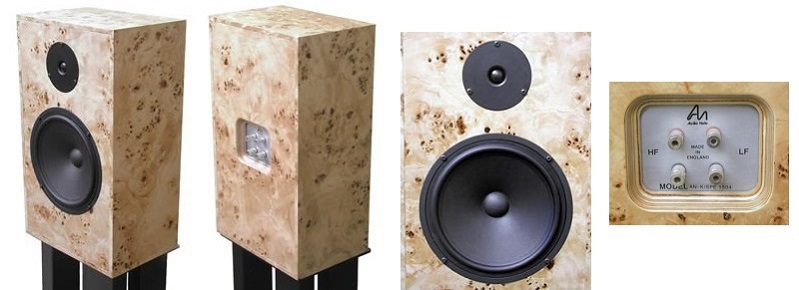

Audio Note AN-K SPe speakers

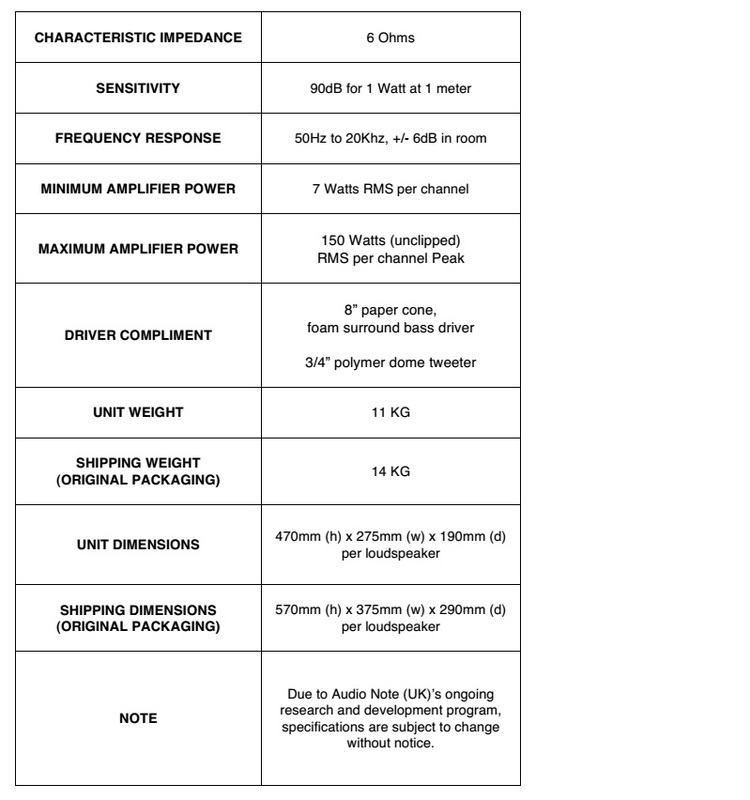

AN-K Speakers Technical Specifications
