Ortofon Tonearms

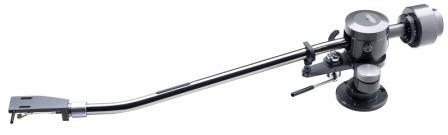

Ortofon TA-210 12" Static Balance Tonearm
The Ortofon TA-210 tonearm has gone to the next level by reducing
unwanted vibrations in the tonearm. Our extensive knowledge of vibration
properties and characteristics in different shapes and materials has
been applied for optimization of TA-210 tonearm
The TA-210 is given a precision machined slit in each end of the aluminum tube. A piece of Ortofon special vibration damping compound is integrated into each slit: Rubber inserts with high vibration damping properties and Special proprietary TPE compound with excellent damping properties are integrated respectively in the bottom and top slit of the arm tube. Due
to these two different materials an extended damping effect is obtained
in the largest possible range. Both inserts integrated in the tonearm
tube are manufactured at the Ortofon technical facilities in Nakskov,
Denmark.
TA-210 armtube is a lot less stressed than conventional armtubes due to the Technical rubber and TPE excellent damping properties.
TA-210 armtube is a lot less stressed than conventional armtubes due to the Technical rubber and TPE excellent damping properties.
Ortofon TA-110 9" Static Balance Tonearm
TA-110 has gone to the next level by reducing unwanted vibrations in the tonearm.
Ortofon's material know-how is the first area of the Ortofon technology that was applied when developing the TA-110. As a specialist in technical rubber, Ortofon used one of its special rubber compounds when creating the specially shaped rubber with high vibration dampening properties. The rubber pieces are produced at the Ortofon technical rubber facilities in Nakskov.
The second area of Ortofon technology is the extensive knowledge of vibration properties and characteristics. Ortofon has acquired this know-how via the developement of Bone Conductors for hearing aid industry. By using this knowledge and the related computer programs that simulated vibration in different shapes and materials, Ortofon came up with an optimized TA-110.
The TA-110 is a product with great benefits for the discerning analogue user.
The TA-110 is given a precision machined slit in the middle of the aluminium tube. A piece of Ortofon's special vibration damping rubber is inserted into the slit. An armtube without slit and rubber damper is symmetrical in a vertical and lateral plane with respect to vibrations. The slit breaks this symmetry, and mounting the rubber insert gives the desired damping.
Ortofon's material know-how is the first area of the Ortofon technology that was applied when developing the TA-110. As a specialist in technical rubber, Ortofon used one of its special rubber compounds when creating the specially shaped rubber with high vibration dampening properties. The rubber pieces are produced at the Ortofon technical rubber facilities in Nakskov.
The second area of Ortofon technology is the extensive knowledge of vibration properties and characteristics. Ortofon has acquired this know-how via the developement of Bone Conductors for hearing aid industry. By using this knowledge and the related computer programs that simulated vibration in different shapes and materials, Ortofon came up with an optimized TA-110.
The TA-110 is a product with great benefits for the discerning analogue user.
The TA-110 is given a precision machined slit in the middle of the aluminium tube. A piece of Ortofon's special vibration damping rubber is inserted into the slit. An armtube without slit and rubber damper is symmetrical in a vertical and lateral plane with respect to vibrations. The slit breaks this symmetry, and mounting the rubber insert gives the desired damping.
Ortofon AS-309S 12" Static Balance Tonearm
AS-309S 12 inch static-balance tonearm features
high quality materials and construction, combined with a nod to analog’s
past, for precise sound reproduction combined with a modern-vintage
aesthetic
AS series tonearms can be used for a wide array of cartridges (SPUs require an additional counterweight) and feature anti-skating control.
Technical data:
Effective mass (without headshell): 4.0 g
Effective length (distance between the stylus and pivot point): 329mm
Mounting distance between the pivot point and turntable center: 314mm
Offset angle: 19 degrees
Overhang: 15mm
Tracking force adjusting range ( direct reading): 0 to 3g
Height adjustment range: 35mm to 55mm
Diameter of the armbase mounting hole: 19mm to 20mm
Diameter of center shaft: 18mm
Technical data:
Effective mass (without headshell): 4.0 g
Effective length (distance between the stylus and pivot point): 329mm
Mounting distance between the pivot point and turntable center: 314mm
Offset angle: 19 degrees
Overhang: 15mm
Tracking force adjusting range ( direct reading): 0 to 3g
Height adjustment range: 35mm to 55mm
Diameter of the armbase mounting hole: 19mm to 20mm
Diameter of center shaft: 18mm
Ortofon RS-309D 12" Dynamic-Balance Tonearm
RS-309D 12 inch Ortofon’s D series tonearm takes analog sound
reproduction to a higher level with highly configurable VTF options and a
dynamic balance system for increased stability when tracking warps and
other anomalies.
D series tonearms can be used for a wide array of cartridges, feature anti-skating control.
Features:
• Dynamic balance graduated vertical tracking force (VTF) control through a new spring design
• The new short wire spring, housed in the pivot case, eliminates unwanted vibrations in the tone arm
• VTF in the range 0-5 grams can be precisely adjusted by means of the supplied digital force gauge
• Anti-skate control adjusted by calibrated dial in the range 0-5 gram
• Tone arm height, and thereby VTA, is easy adjustable on the tonearm base.
• Detachable head shell and tone arm cable, with standard SME-type connectors.
D series tonearms can be used for a wide array of cartridges, feature anti-skating control.
Features:
• Dynamic balance graduated vertical tracking force (VTF) control through a new spring design
• The new short wire spring, housed in the pivot case, eliminates unwanted vibrations in the tone arm
• VTF in the range 0-5 grams can be precisely adjusted by means of the supplied digital force gauge
• Anti-skate control adjusted by calibrated dial in the range 0-5 gram
• Tone arm height, and thereby VTA, is easy adjustable on the tonearm base.
• Detachable head shell and tone arm cable, with standard SME-type connectors.
Ortofon AS-212S 9" Static Balance Tonearm
AS-212S 9 inch Ortofon’s AS
series static-balance tonearms feature high quality materials and
construction, combined with a nod to analog’s past, for precise sound reproduction combined with a modern-vintage aesthetic.
Technical data:
Effective mass (without headshell): 3.5 g
Effective length (distance between the stylus and pivot point): 231mm
Mounting distance between the pivot point and turntable center): 216mm
Offset angle: 22 degrees
Overhang: 15mm
Inner null point: 58,5 mm
Outer null point: 114,5 mm
Tracking force adjusting range ( direct reading): 0 to 5g
Height adjustment range: 35mm to 55mm
Diameter of the armbase mounting hole: 19mm to 20mm
Diameter of center shaft: 18mm
Optional counterweight for heavier cartridge between 26 and 38 grams is available.
Effective mass (without headshell): 3.5 g
Effective length (distance between the stylus and pivot point): 231mm
Mounting distance between the pivot point and turntable center): 216mm
Offset angle: 22 degrees
Overhang: 15mm
Inner null point: 58,5 mm
Outer null point: 114,5 mm
Tracking force adjusting range ( direct reading): 0 to 5g
Height adjustment range: 35mm to 55mm
Diameter of the armbase mounting hole: 19mm to 20mm
Diameter of center shaft: 18mm
Optional counterweight for heavier cartridge between 26 and 38 grams is available.
Ortofon RS-212D 9" Dynamic-Balance Tonearm
The Ortofon RS-212D tonearm takes
analog sound reproduction to a higher level with highly configurable
VTF options and a dynamic balance system for increased stability when
tracking warps and other anomalies .
Technical data:
Effective mass (without headshell): 3.5 g
Effective length (distance between the stylus and pivot point): 231mm
Mounting distance between the pivot point and turntable center): 216mm
Offset angle: 22 degrees
Overhang: 15mm
Inner null point: 58,5 mm
Outer null point: 114,5 mm
Tracking force adjusting range (direct reading): 0 - 5 g
Height adjustment range: 42 mm - 57 mm
Diameter of the armbase mounting hole: 34 mm - 36 mm
Diameter of the center shaf: 16 mm
Fixing holes PCD: dia. 50 mm
Size/Thread: dia. 3.2 mm (dia. 3mm x 20mm and dia. 3 mm wood screw)
Technical data:
Effective mass (without headshell): 3.5 g
Effective length (distance between the stylus and pivot point): 231mm
Mounting distance between the pivot point and turntable center): 216mm
Offset angle: 22 degrees
Overhang: 15mm
Inner null point: 58,5 mm
Outer null point: 114,5 mm
Tracking force adjusting range (direct reading): 0 - 5 g
Height adjustment range: 42 mm - 57 mm
Diameter of the armbase mounting hole: 34 mm - 36 mm
Diameter of the center shaf: 16 mm
Fixing holes PCD: dia. 50 mm
Size/Thread: dia. 3.2 mm (dia. 3mm x 20mm and dia. 3 mm wood screw)
At Deja Vu Audio, we have COrtofon Tonearms for sale, contact us at 703-734-9391!
