Synthesis Preamplifiers
BRIO Phono Stage | ECSTASY Dual Mono Tube Preamp | ROMA 79DC Tube Phono Stage
All Synthesis products, are made by hand in our factory in Italy.
All metalwork, boards, transformers and major parts are Italian-made and sourced locally.
We take a great deal of pride in our workmanship, and so will you.
From its foundation in 1992, the "Synthesis Art in Music ®" has had as its main objective the design of equipment whose ultimate aim is not just sound reproduction, but also to offer a product that represents refined elegance and musicality all rolled into a single element.
SYNTHESIS company is a dynamic, fast growing company that looks to the future and, compared with other companies in this field, has been able to anticipate the metamorphosis of the various success factors in the Hi-Fi market.
The company is now among the most important and best appreciated companies in this sector, and this has been thanks to the intuition shown in foreseeing the importance of design and communications, as well as to the capacity to identify already well-known partners, thus enabling it to successfully penetrate foreign markets.
To listen to any SYNTHESIS products, please visit our audio rooms, or schedule an appointment 703-734-9391!
Deja Vu Audio is the distributor of SYNTHESIS for the U.S.
View ALL SYNTHESIS audio products
All metalwork, boards, transformers and major parts are Italian-made and sourced locally.
We take a great deal of pride in our workmanship, and so will you.
From its foundation in 1992, the "Synthesis Art in Music ®" has had as its main objective the design of equipment whose ultimate aim is not just sound reproduction, but also to offer a product that represents refined elegance and musicality all rolled into a single element.
SYNTHESIS company is a dynamic, fast growing company that looks to the future and, compared with other companies in this field, has been able to anticipate the metamorphosis of the various success factors in the Hi-Fi market.
The company is now among the most important and best appreciated companies in this sector, and this has been thanks to the intuition shown in foreseeing the importance of design and communications, as well as to the capacity to identify already well-known partners, thus enabling it to successfully penetrate foreign markets.
To listen to any SYNTHESIS products, please visit our audio rooms, or schedule an appointment 703-734-9391!
Deja Vu Audio is the distributor of SYNTHESIS for the U.S.
View ALL SYNTHESIS audio products

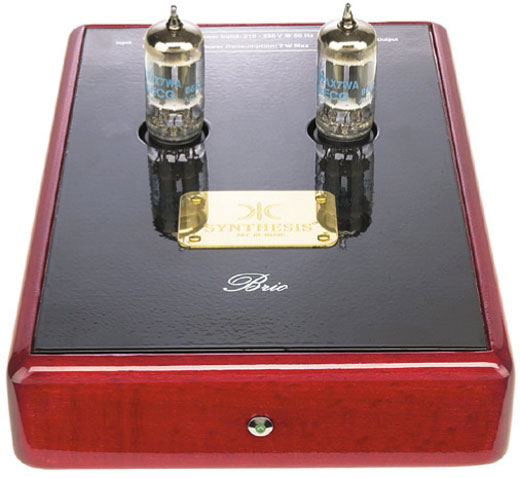

BRIO Moving Magnet Phono Stage Preamplifier
Brio phono stage is caters for both MM and mid-high level MC cartridges with high output impedance. Separate power supply (included) reduce the interferecies from a power line. All of our units are designed in order to be able to reproduce music in normal domestic atmospheres, rather than only in an acoustically perfect room.
Great care has been given to the aesthetic factor.
Beautiful real woods and matched finishes make these units a perfect partner with the other fine products of Synthesis.
With such a choice this allows with both great elegance and refinement these systems to integrate seamlessly into any home environment.
Great care has been given to the aesthetic factor.
Beautiful real woods and matched finishes make these units a perfect partner with the other fine products of Synthesis.
With such a choice this allows with both great elegance and refinement these systems to integrate seamlessly into any home environment.
TECHNICAL SPECIFICATIONS:
Amplifier section:
Input stage: ½ 12AX7-ECC83
Output stage: ½ 12AX7-ECC83
Input impedance: 47 Kohm
Input sensitivity: 1 mV
Max output level: 10V RMS
Gain: 40dB
RIAA accuracy: 20Hz to 20KHz +-0,5dB
Frequency response: 20Hz to 20KHz -0,5dB
Phase: Non Inverted
Signal/Noise ratio: >80dB, A weighted
Controls:
Front: Led
Rear: Power button, male power sck,
RCA input gold plated connectors,
RCA output gold plated connectors, ground connector.
Finish: Ecologically sensitive lacquer
Dimensions: (w,d,h) 145x220x100mm
Weight: 1.5 Kg
Power supply section:
Power consumption: 15W Max
Controls:
Rear: Power plug, protection fuse.
Finish: White plastic
Dimensions: (w,d,h) 80x120x60mm
Weight: 0.9 K
Amplifier section:
Input stage: ½ 12AX7-ECC83
Output stage: ½ 12AX7-ECC83
Input impedance: 47 Kohm
Input sensitivity: 1 mV
Max output level: 10V RMS
Gain: 40dB
RIAA accuracy: 20Hz to 20KHz +-0,5dB
Frequency response: 20Hz to 20KHz -0,5dB
Phase: Non Inverted
Signal/Noise ratio: >80dB, A weighted
Controls:
Front: Led
Rear: Power button, male power sck,
RCA input gold plated connectors,
RCA output gold plated connectors, ground connector.
Finish: Ecologically sensitive lacquer
Dimensions: (w,d,h) 145x220x100mm
Weight: 1.5 Kg
Power supply section:
Power consumption: 15W Max
Controls:
Rear: Power plug, protection fuse.
Finish: White plastic
Dimensions: (w,d,h) 80x120x60mm
Weight: 0.9 K

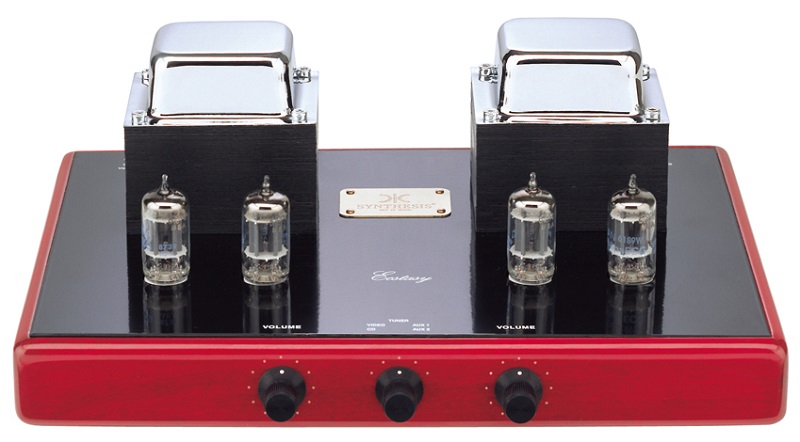

ECSTASY A-class Dual Mono Tube Preamplifier
A preamplifier must keep the audio signal as pure as possible, while amplifying and routing various source signals to the power amplifier.
The goal of the engineer is to achieve “a straight wire with gain” design, nothing more and nothing less.
Of course, the realization of this goal is much harder than it seems, but Synthesis’s experience and meticulous circuit design has produced a string of exceptional stereo preamplifiers over the years, which has been taken to new heights in the Ecstasy. The Ecstasy is designed for the hi-fi purist in terms of its minimalist approach and absolute musical fidelity.
Independent to the mains transformer, each channel has a separate power supply to maintain excellent interference immunity between channels.
Component parts, such as an separated oversized power transformer and selected metallised polypropylene capacitors, along with circuit topology, have been carefully selected to obtain the best sound possible.
The goal of the engineer is to achieve “a straight wire with gain” design, nothing more and nothing less.
Of course, the realization of this goal is much harder than it seems, but Synthesis’s experience and meticulous circuit design has produced a string of exceptional stereo preamplifiers over the years, which has been taken to new heights in the Ecstasy. The Ecstasy is designed for the hi-fi purist in terms of its minimalist approach and absolute musical fidelity.
Independent to the mains transformer, each channel has a separate power supply to maintain excellent interference immunity between channels.
Component parts, such as an separated oversized power transformer and selected metallised polypropylene capacitors, along with circuit topology, have been carefully selected to obtain the best sound possible.
Technical specifications:
Input stage: 12AU7- ECC82
Output stage: 12AU7- ECC82
Input impedance: 100Kohm
Configuration: Shunt Regulator Push/Pull
Gain: 10dB
Phase: Inverted
Output voltage max: 20V RMS
Frequency response: 20Hz to 20KHz 0dB
Signal-Noise ratio: >90dB, A weighted
Input: Cdp, Tuner, Video, Aux1, Aux2
Output: Tape Out
Controls:
Front: Input switch selector, Right volume,
Left volume.
Rear: On-Off switch, male power sck,
RCA gold plated connectors,
protection fuses.
Power consumption: 30W Max
Finish: Ecologically sensitive lacquer
Dimensions: (w,d,h) 320x220x120mm
Weight: 8.0 Kg
Input stage: 12AU7- ECC82
Output stage: 12AU7- ECC82
Input impedance: 100Kohm
Configuration: Shunt Regulator Push/Pull
Gain: 10dB
Phase: Inverted
Output voltage max: 20V RMS
Frequency response: 20Hz to 20KHz 0dB
Signal-Noise ratio: >90dB, A weighted
Input: Cdp, Tuner, Video, Aux1, Aux2
Output: Tape Out
Controls:
Front: Input switch selector, Right volume,
Left volume.
Rear: On-Off switch, male power sck,
RCA gold plated connectors,
protection fuses.
Power consumption: 30W Max
Finish: Ecologically sensitive lacquer
Dimensions: (w,d,h) 320x220x120mm
Weight: 8.0 Kg

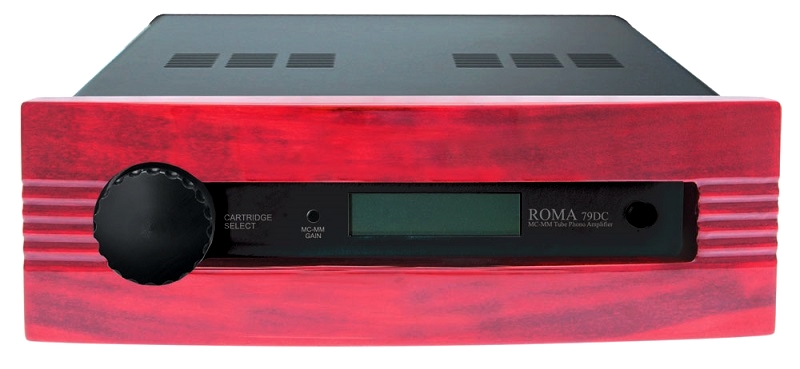

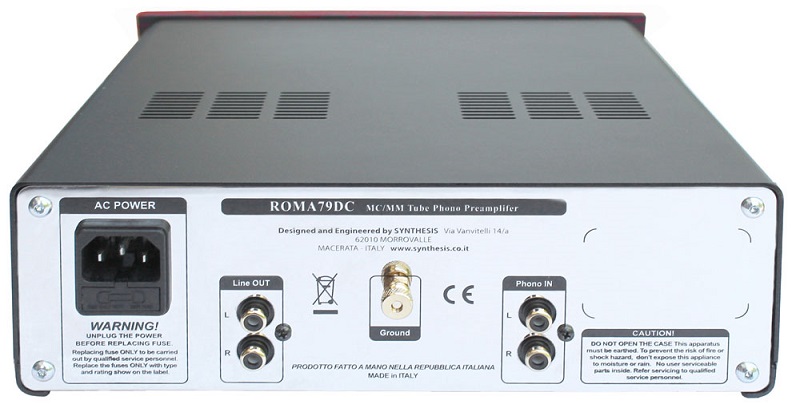

ROMA 79DC Tube phono stage MM-MC Preamplifiers
Synthesis is set to release a new tube phono stage, the Roma79DC.
The all important component of this of this line stage comprises of two ECC83/12AX7 and one ECC82/12AU7 are run by a multi stage fully regulated power supply.

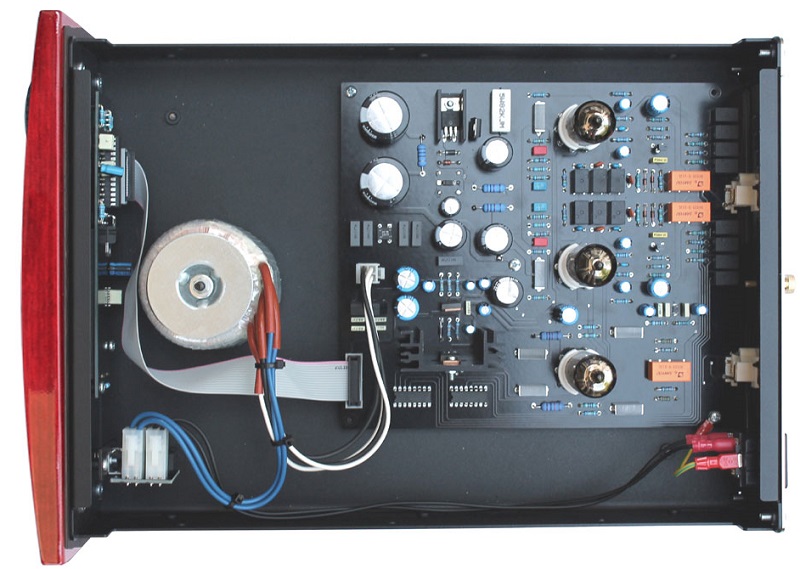

To back this up the design has an over size shielded power transformer for reduce the interference. An array high grade metalized polipropilene capacitors controlling the audio signal circuits. The MM input stage uses a low noise JFet with a separate regulated power supply with extensive filtering for reducing the interference and noise. Using an ECC82/12AU7 tube on the output stage, gives this unit a very low output impedance without losing signal.
The Roma79DC has easily selectable capacitors (MM) and impedances (MC) for cartridges by a front mounted knob selector which is also shown on the front LCD display.
