JOLIDA DAC

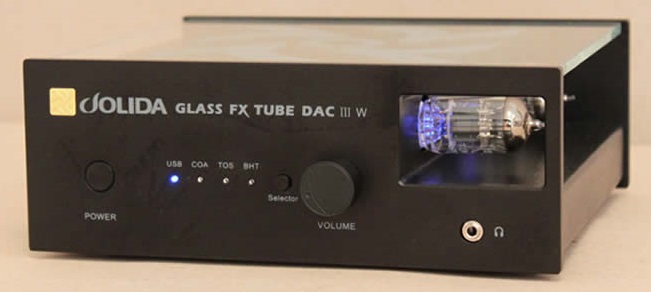

Glass FX Tube DAC III W

A DAC with a heart of glass and no solid state op amps in the signal path. This unit will maintain the purity of your digital sound with the latest in chip technology, galvanic isolation and circuit design giving you the smooth and rich analog sound only vacuum tubes can deliver.

Output Level:                        0 V to 2.3V  (±1dB, 47K ohms)(SIN SIGNAL 0dB SPDIF IN)
Frequency Response:          20-20 KHz   （±0.5dB）
Bandwidth:                            10Hz to 70kHz + 1dB
SNR                                        ＞90dB ( 20Hz-20kHz)
Dynamic Range                     126 dB


Distortion THD:                    Less than 0.01% (1kHz)
Headphone Impedance        30 Ohms
Circuit Type:                         Ultra Linear, Class AB
Tube Complement:               2 pcs. 12AX7 pre-amplifier
Power Requirements:          110V-120 VAC 60Hz 90 watts-standby, 240 watts maximum (220 VAC 50Hz option)
Dimensions:                          8 inches wide by 7 inches deep by 3 inches high
Weight:                                   7.5 lbs net, approximately 10 lbs.packaged
Warranty:                               6 month limited parts and labor. Three months on the tubes
Fuse:                                      110 - 120 VAC, 1 Amp slo Blo; 200 - 240 VAC, .5 Amp Slo Blo

Jolida
Address: 21310 Ridgecroft Drive, Brookeville, MD 20833
