SYNTHESIS ECSTASY Mono Tube Preamplifiers

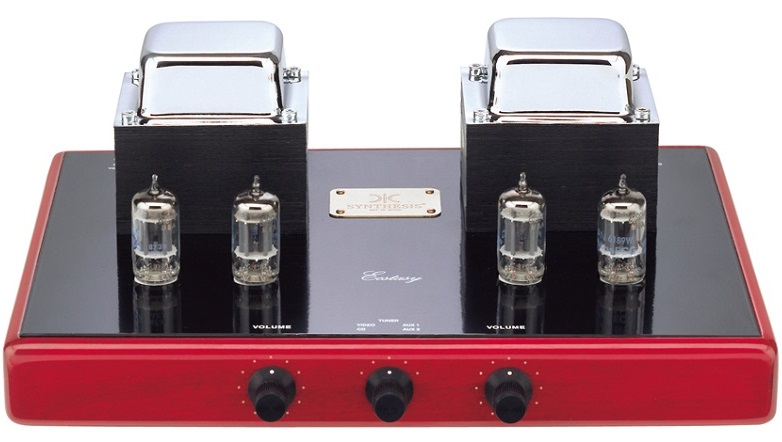

ECSTASY A-class Dual Mono Tube Preamplifier
A preamplifier must keep the audio signal as pure as possible, while amplifying and routing various source signals to the power amplifier.
The goal of the engineer is to achieve “a straight wire with gain” design, nothing more and nothing less.
Of course, the realization of this goal is much harder than it seems, but Synthesis’s experience and meticulous circuit design has produced a string of exceptional stereo preamplifiers over the years, which has been taken to new heights in the Ecstasy. The Ecstasy is designed for the hi-fi purist in terms of its minimalist approach and absolute musical fidelity.
Independent to the mains transformer, each channel has a separate power supply to maintain excellent interference immunity between channels.
Component parts, such as an separated oversized power transformer and selected metallised polypropylene capacitors, along with circuit topology, have been carefully selected to obtain the best sound possible.
The goal of the engineer is to achieve “a straight wire with gain” design, nothing more and nothing less.
Of course, the realization of this goal is much harder than it seems, but Synthesis’s experience and meticulous circuit design has produced a string of exceptional stereo preamplifiers over the years, which has been taken to new heights in the Ecstasy. The Ecstasy is designed for the hi-fi purist in terms of its minimalist approach and absolute musical fidelity.
Independent to the mains transformer, each channel has a separate power supply to maintain excellent interference immunity between channels.
Component parts, such as an separated oversized power transformer and selected metallised polypropylene capacitors, along with circuit topology, have been carefully selected to obtain the best sound possible.
ECSTASY Preamp Technical Specifications
Input stage: 12AU7- ECC82
Output stage: 12AU7- ECC82
Input impedance: 100Kohm
Configuration: Shunt Regulator Push/Pull
Gain: 10dB
Phase: Inverted
Output voltage max: 20V RMS
Frequency response: 20Hz to 20KHz 0dB
Signal-Noise ratio: >90dB, A weighted
Input: Cdp, Tuner, Video, Aux1, Aux2
Output: Tape Out
Controls:
Front: Input switch selector, Right volume,
Left volume.
Rear: On-Off switch, male power sck,
RCA gold plated connectors,
protection fuses.
Power consumption: 30W Max
Finish: Ecologically sensitive lacquer
Dimensions: (w,d,h) 320x220x120mm
Weight: 8.0 Kg
Output stage: 12AU7- ECC82
Input impedance: 100Kohm
Configuration: Shunt Regulator Push/Pull
Gain: 10dB
Phase: Inverted
Output voltage max: 20V RMS
Frequency response: 20Hz to 20KHz 0dB
Signal-Noise ratio: >90dB, A weighted
Input: Cdp, Tuner, Video, Aux1, Aux2
Output: Tape Out
Controls:
Front: Input switch selector, Right volume,
Left volume.
Rear: On-Off switch, male power sck,
RCA gold plated connectors,
protection fuses.
Power consumption: 30W Max
Finish: Ecologically sensitive lacquer
Dimensions: (w,d,h) 320x220x120mm
Weight: 8.0 Kg
Available Finishes:
|
BLACK
|
RED
|
WHITE
|
